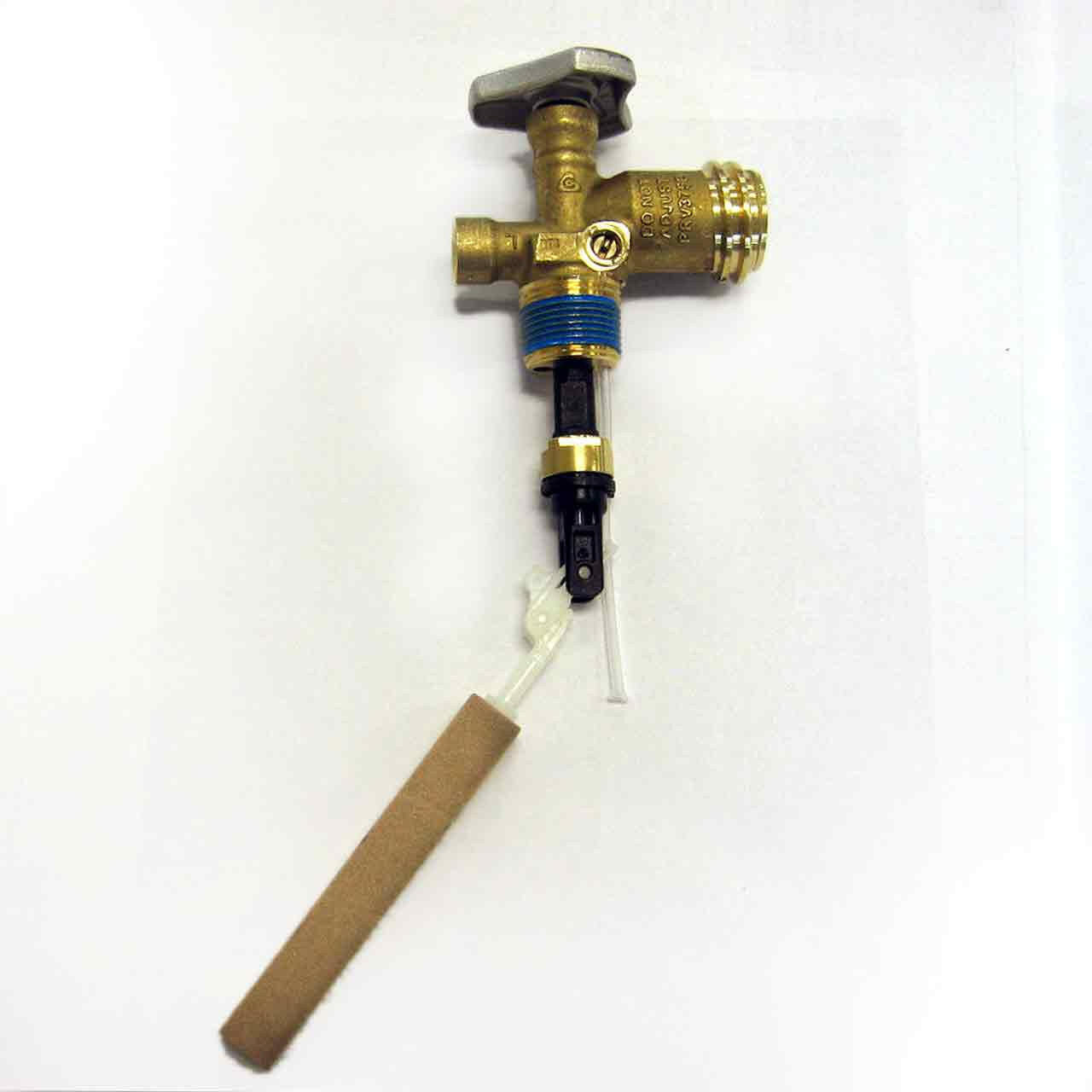

The G110 OPD Cylinder Valve is designed for 20 lb, 30 lb, and 40 lb propane cylinders and features an integrated Overfill Prevention Device (OPD) for safer filling performance. Engineered with a dual O-ring stem seal, precision 80% fill capability, and a high withdrawal capacity, this valve delivers reliable propane flow and efficient filling performance.

Key Features

• Compatible with 20 lb, 30 lb, and 40 lb propane cylinders
• OPD (Overfill Prevention Device) valve design
• Dual O-ring stem seal for enhanced leak protection
• Precision filling to 80% capacity
• Up to 30% faster fill rate compared to standard valves
• One million BTU withdrawal capacity
• Durable construction for propane cylinder applications

Detailed Specifications

• Product Type: Cylinder Valve
• Model: G110 OPD
• Part Number: 108413
• Valve Type: OPD (Overfill Prevention Device)
• Compatible Cylinder Sizes: 20 lb, 30 lb, 40 lb
• Width: 14-1/4 Inch
• Depth: 2-3/8 Inch
• Length: 18-1/2 Inch
• Weight: 4.17 lbs
• Fill Capacity Control: Precision 80% fill
• Withdrawal Capacity: One Million BTU
• Seal Type: Dual O-ring stem seal
