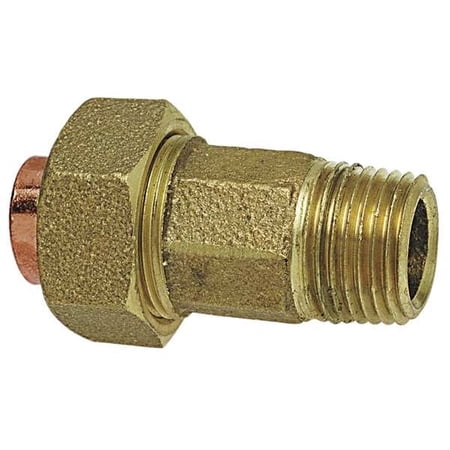

The Nibco 7334LF-34 Union is a high-quality straight union fitting made of durable cast bronze (C87850), designed for potable water applications. It features a copper tube connection on one side and MNPT (male national pipe thread) on the other, providing a reliable and leak-free connection for 3/4-inch tubing. Rated for high pressure and temperature, this union ensures long-lasting performance in residential and commercial plumbing systems.

Features:

• Material: Durable cast bronze (C87850, Alloy 87850)
• Connection Types: Cup (Side A) and MNPT (Side B)
• Tube Size: 3/4 inch (7/8 inch outer diameter)
• Maximum Pressure: 466 psi
• Maximum Temperature: 200°F
• Fitting Shape: Straight union
• Standards: ASTM B584, NSF/ANSI 61 Annex G certified
• Application: Potable water systems
• Color: Gold

Details / Specifications:

• Brand: Nibco
• Model Number: 7334LF-34
• Side A Material: Copper tube connection
• Side B Material: MNPT pipe connection
• Fitting Material: Bronze
• Tube Outer Diameter (Side A & B): 7/8 in
• Pipe Size (Side B): 3/4 in
• Shipping Weight: 0.0 lbs
