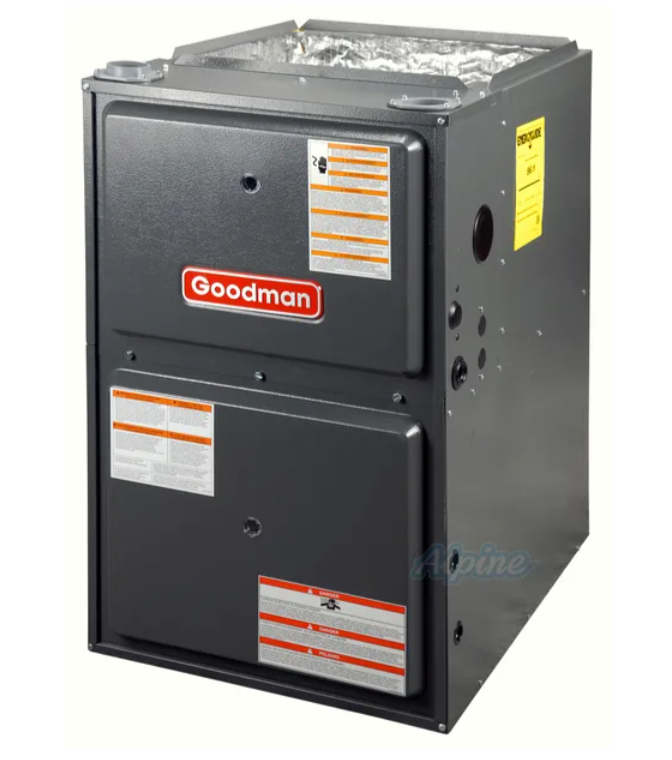

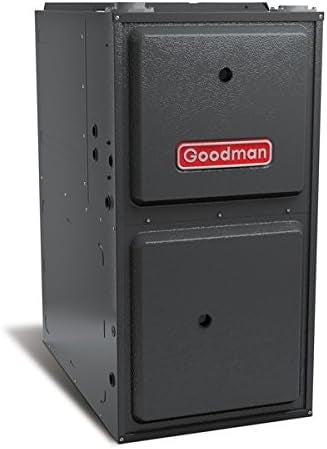

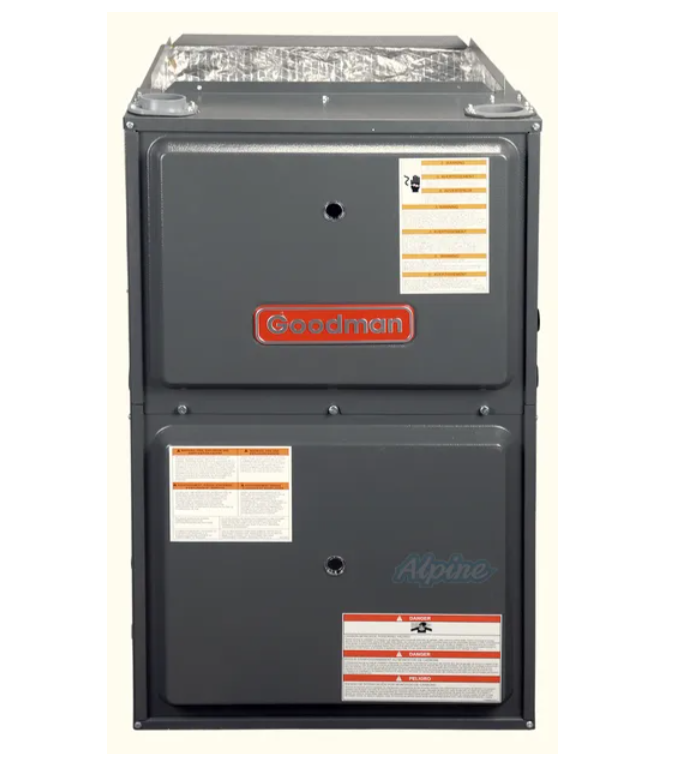

The Goodman GMEC960402BN Two-Stage Gas Furnace is engineered for efficient, quiet, and reliable home heating performance. Designed for upflow and horizontal installation applications, this 40,000 BTU natural gas furnace features a two-stage gas valve that delivers consistent indoor comfort while reducing energy consumption. Its quiet two-speed induced draft blower and low continuous fan speed options ensure smooth and silent airflow throughout your home.

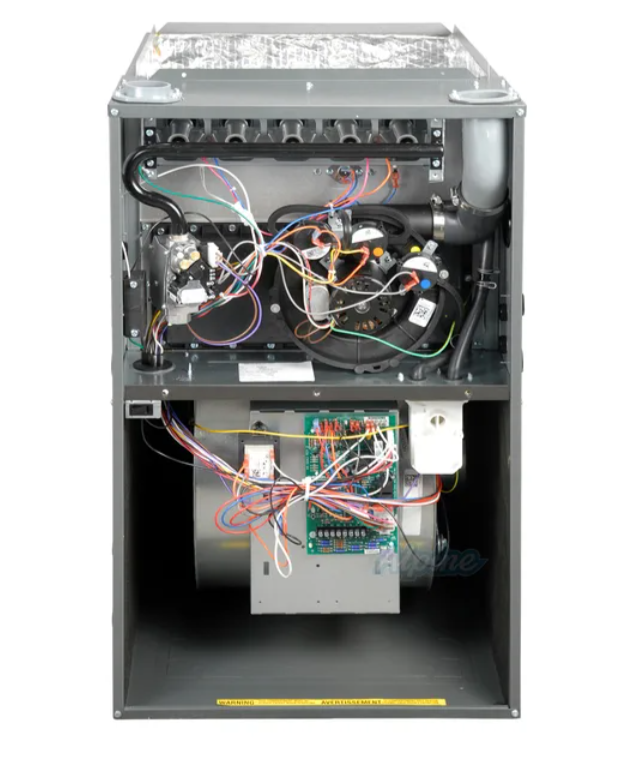

Equipped with a self-diagnostic control board with LED fault code display, the GMEC960402BN simplifies troubleshooting and maintenance. The furnace also offers flexible installation with top venting and optional side venting configurations, making it an ideal solution for residential heating systems.

Features

• 40,000 BTU input heating capacity
• High-efficiency 96% AFUE performance
• Two-stage gas valve for improved comfort and energy savings
• Quiet two-speed induced draft blower
• Upflow and horizontal installation compatibility
• Self-diagnostic control board with LED fault code history
• Low continuous fan speed for quiet air circulation
• Top venting with optional side venting
• 800 CFM airflow capacity
• Durable and compact cabinet design
• Operates on 115V power supply

Details & Specifications

• Brand: Goodman
• Model: GMEC960402BN
• Product Type: Two-Stage Gas Furnace
• Installation Type: Upflow / Horizontal
• Fuel Type: Natural Gas
• Heating Capacity: 40,000 BTU/hr Input
• Efficiency: 96% AFUE
• Airflow Capacity: 800 CFM
• Voltage: 115 V
• Blower Type: Two-Speed Induced Draft Blower
• Venting: Top Venting with Optional Side Venting
• Width: 17 1/2 Inch
• Depth: 28 3/4 Inch
• Length: 34 1/2 Inch
• Weight: 112 lbs
• UPC: 663051553927
