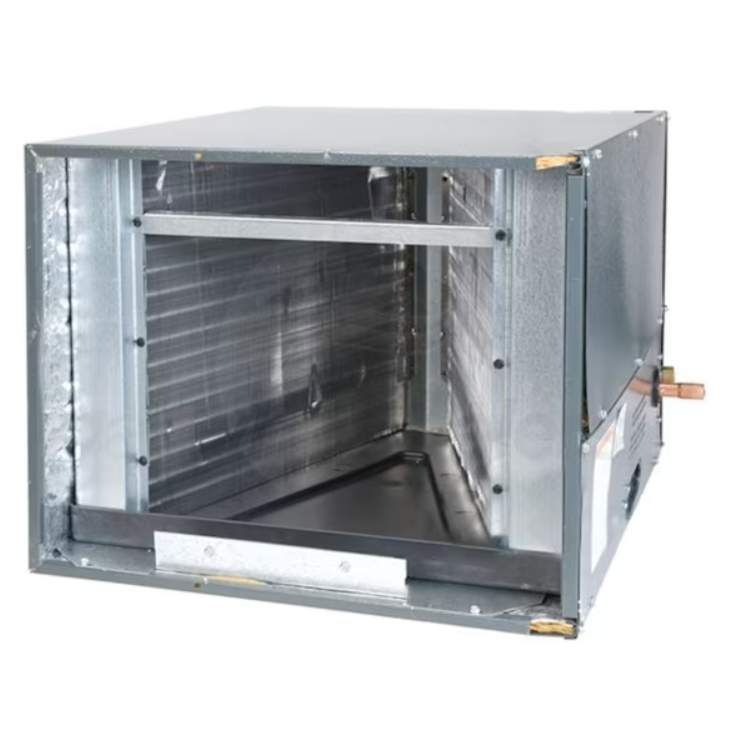

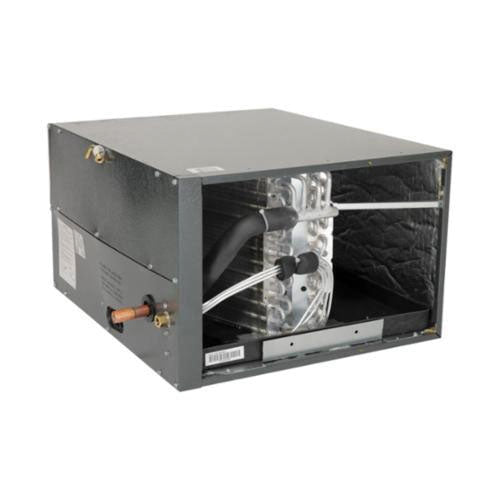

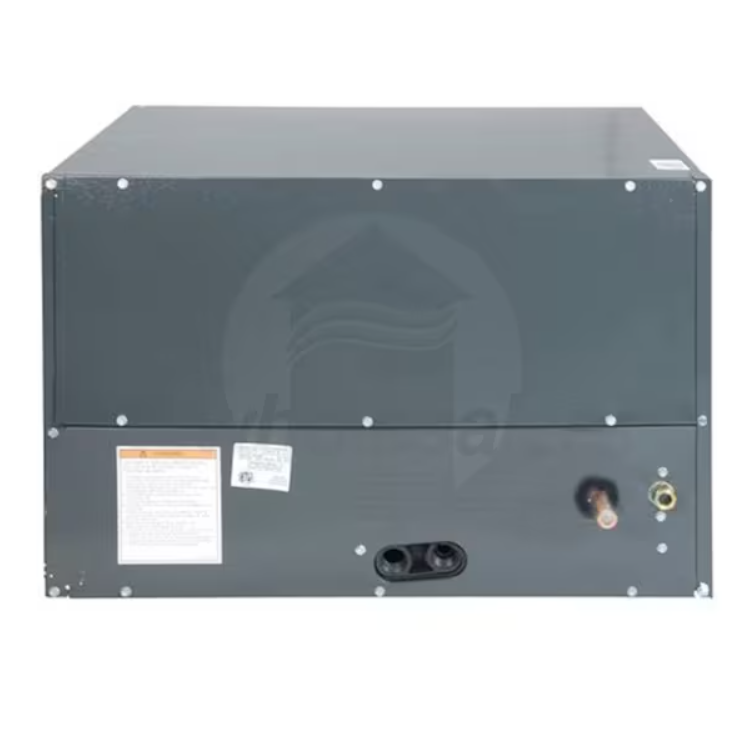

The Goodman CHPF1824A6 is a horizontal cased full “A” evaporator coil designed for use with split system air conditioners and heat pumps. Built with an all-aluminum coil design and durable painted galvanized steel cabinet, this indoor coil is compatible with 1.5 to 2 ton HVAC systems and supports R-22 and R-410A refrigerants.

Key Features

• Designed for split system air conditioners and heat pumps
• Compatible with 1.5 to 2 ton HVAC systems
• Horizontal cased full “A” coil configuration
• All-aluminum evaporator coil construction
• Painted galvanized steel cabinet with Architectural Gray finish
• Factory-equipped Flowrater metering device
• Compatible with R-22 and R-410A refrigerants
• Foil-faced internal insulation helps reduce cabinet condensation
• Rust-resistant thermoplastic drain pan with secondary drain connections
• Helium pressure tested and vacuum tested for reliability
• Compact 21-1/8 inch depth for easier attic access
• Fits 14-inch furnace cabinets

Detailed Specifications

• Model: CHPF1824A6
• Brand: Goodman
• Product Type: Horizontal Cased Evaporator Coil
• Coil Style: Full “A” Coil
• Configuration: Horizontal
• Nominal Capacity: 1.5 to 2 Ton
• Cabinet Width: 14 Inches
• Width: 26 Inches
• Height: 14 Inches
• Depth: 21-1/8 Inches
• Refrigerant Compatibility: R-22, R-410A
• Liquid Line Connection Size: 3/8 Inch
• Suction Line Connection Size: 3/4 Inch
• Coil Material: Aluminum
• Cabinet Finish: Painted Architectural Gray
• Metering Device: Flowrater
• Application: Split System Air Conditioners and Heat Pumps
• UPC: 663051451759
