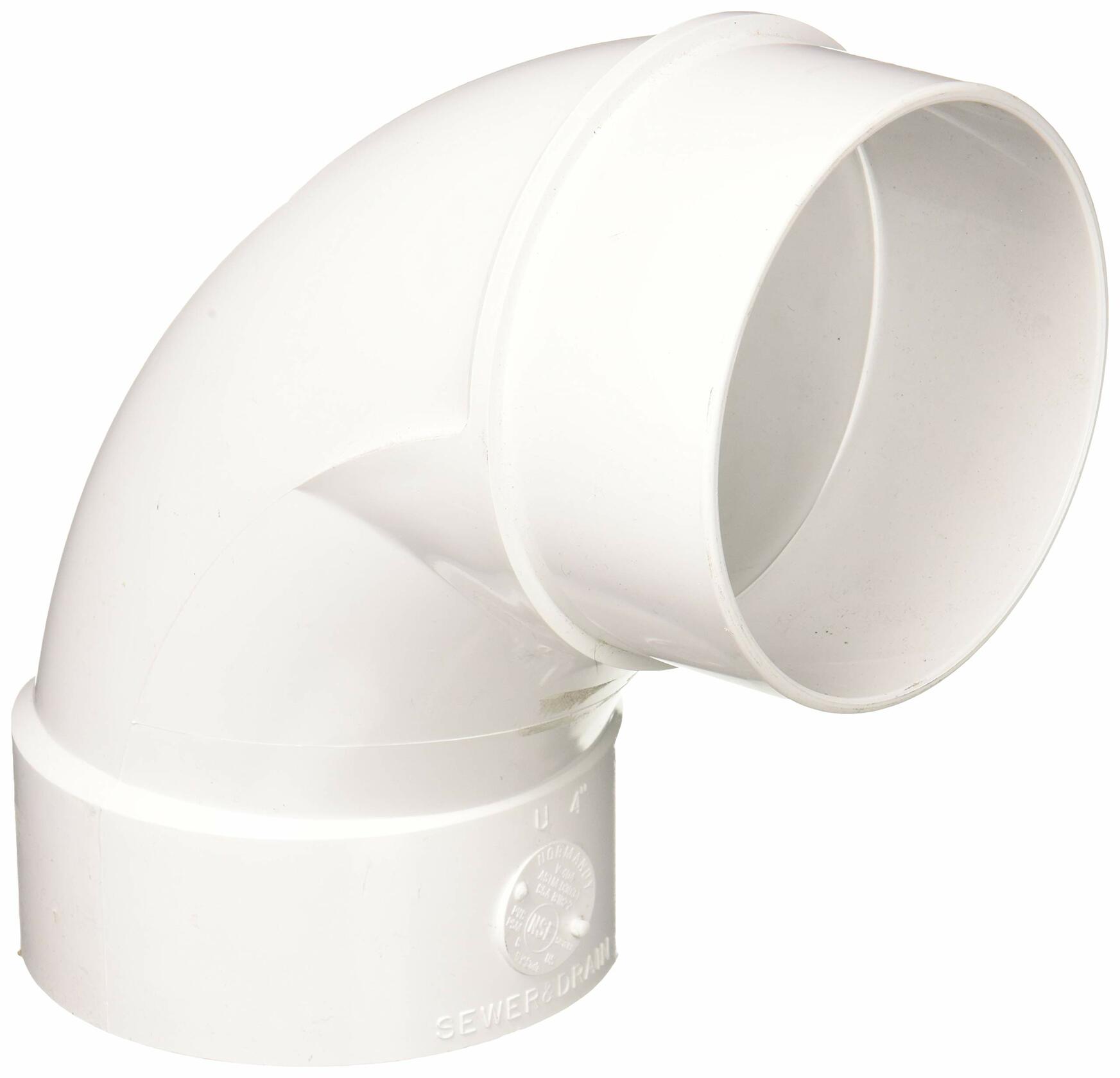

This Genova fitting is a 4 inch PVC DWV long turn 90 degree elbow for drain waste and vent systems It is a street elbow with a hub connection on one end and a spigot connection on the other for direct pipe insertion Constructed from white Schedule 40 PVC it is NSF certified and rated for non-pressure applications within a 32 to 140F temperature range This elbow is essential for creating smooth long radius turns in residential and commercial plumbing systems.

Attribute	Details
Brand	Genova
ANSI Standard	ANSI B16.5
Type	PVC DWV Long Turn 90 Degree Street Elbow
Fitting Size	4 Inch
Schedule Class	Schedule 40
Material	PVC DWV Plastic
Color	White
End Connection 1	Hub
End Connection 2	Spigot
Connection Type	Hub x Spigot Street
Application	Non-Pressure Drain Waste Vent DWV
Certification	NSF 14 Certified
Standards	Meets ASTM D1784, ASTM D2665, ASTM D3311
Maximum Temperature	140 Degrees Fahrenheit
Minimum Temperature	32 Degrees Fahrenheit
Origin	Domestic USA
Package Quantity	1 Fitting
