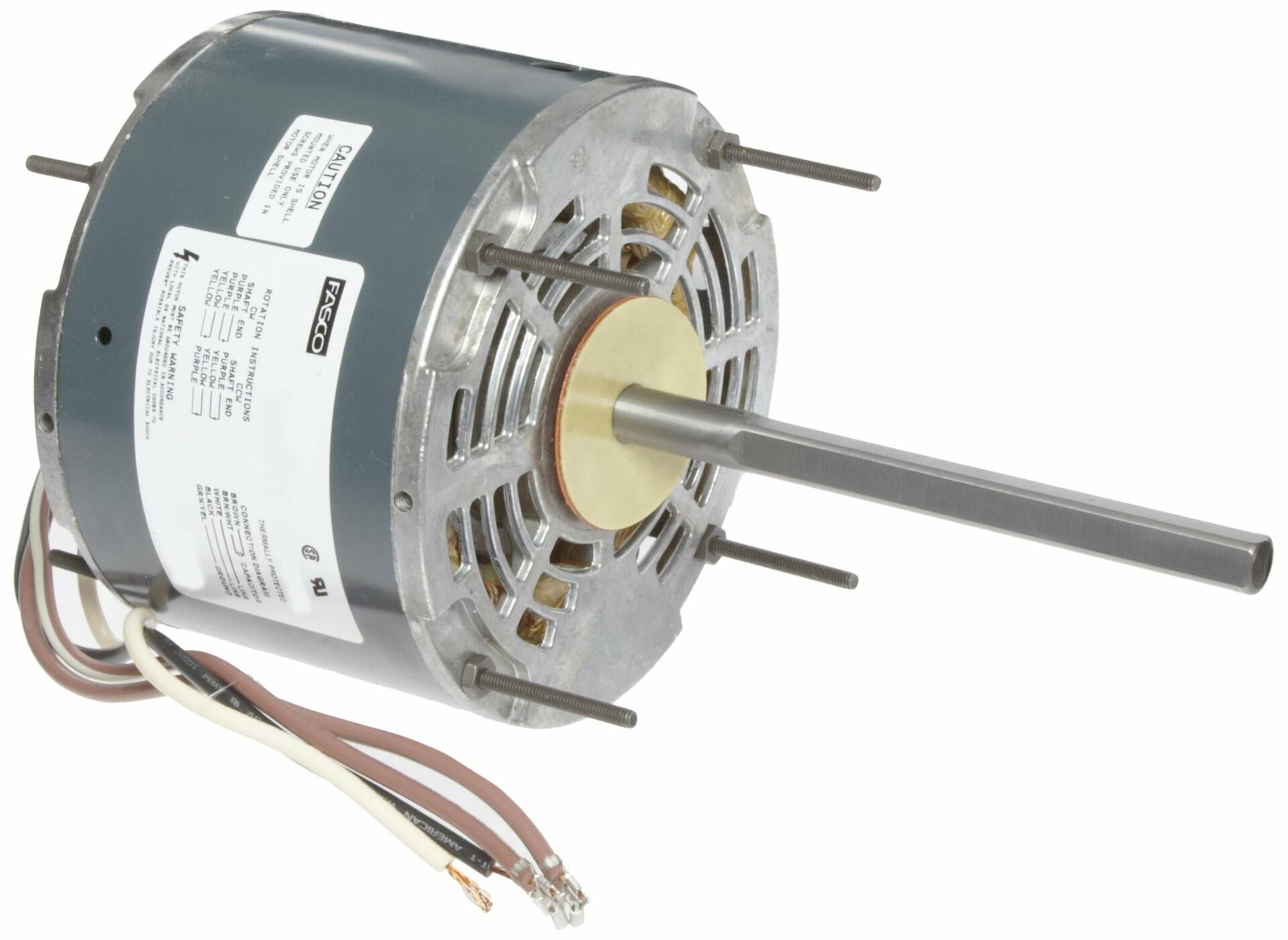

The Fasco D742 is a reliable open ventilated condenser fan motor designed for HVAC and refrigeration applications. This permanent split capacitor PSC motor delivers 1/4 horsepower at 1075 RPM and operates on 208-230 volts single-phase power. Built with a durable 5.6-inch rolled steel frame and sleeve bearing it features thermal protection and is certified for safety by UL and CSA. This electrically reversible motor is versatile for shaft-down or horizontal mounting making it a robust replacement part.

Attribute	Details
Brand	Fasco
Model Number	D742
Type	Condenser Fan Motor
Key Spec	1/4 HP 1075 RPM
Voltage	208 - 230 V
Amperage	2.1 amps Full Load
Motor Design	Permanent Split Capacitor PSC
Phase	Single
Frequency	60 Hz
Frame Size	48 5.6 Inch Diameter
Bearing Type	Sleeve
Shaft Size	0.5 Inch Diameter x 6 Inch Length
Rotation	Electrically Reversible
Thermal Protection	Auto
Certifications	UL Certified CSA Certified
Package Quantity	1
