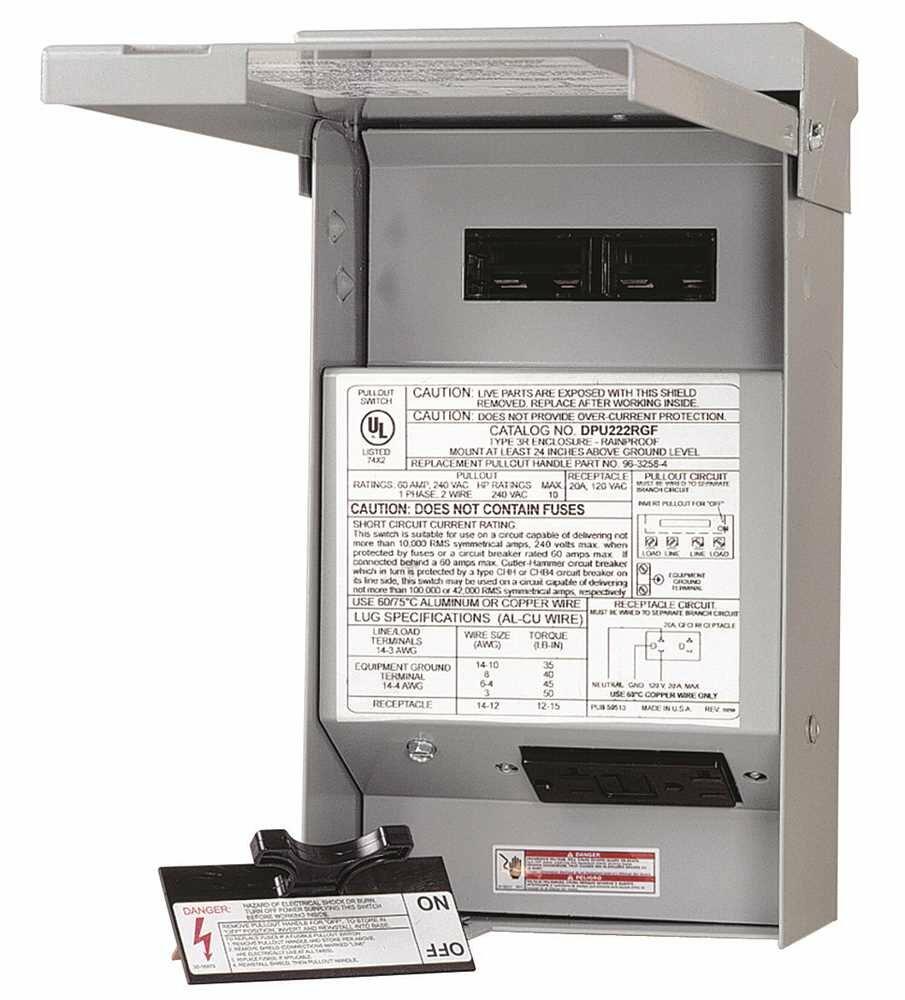

The Eaton DPU222RGF20 is a heavy-duty non-fused AC disconnect designed for safe outdoor HVAC service and maintenance. Rated for 60 Amps and 240 Volts, this wall-mounted disconnect is ideal for air conditioners, heat pumps, and HVAC systems. It features a durable NEMA 3R rainproof galvanized steel enclosure in ANSI 61 gray for reliable outdoor protection. The integrated 20 Amp GFCI receptacle adds convenient service power while supporting copper or aluminum wiring for flexible installation. UL Listed and CSA Certified, this disconnect provides dependable performance for residential and commercial applications.

Key Features

• 60 Amp non-fused pullout AC disconnect
• Rated for 240 Volt HVAC applications
• Heavy-duty NEMA 3R rainproof enclosure
• Durable galvanized steel construction
• ANSI 61 gray finish for outdoor use
• Built-in 20 Amp GFCI convenience outlet
• Compatible with copper and aluminum wire
• Supports #14–3 AWG wiring
• Wall-mounted installation design
• UL Listed and CSA Certified
• Suitable for air conditioners and heat pumps

Product Details

Model: DPU222RGF20
Brand: Eaton
Product Type: Non-Fused AC Disconnect
Amperage Rating: 60 Amps
Voltage Rating: 240 Volts
Horsepower Rating: 10 HP
Enclosure Type: NEMA 3R
Finish: ANSI 61 Gray
Material: Galvanized Steel
Application: Outdoor disconnect for HVAC units, heat pumps, and air conditioners
Installation Type: Wall Mounted
Special Features: Integrated GFCI outlet, accepts copper/aluminum wire, rainproof enclosure
Wire Compatibility: #14–3 AWG Copper or Aluminum
Width: 22 inches
Depth: 13 inches
Length: 18 inches
Height: 7.5 inches
Weight: 1.6 lbs
Part Number: DPU222RGF20
Certifications: UL Listed, CSA Certified
Includes: Valve
