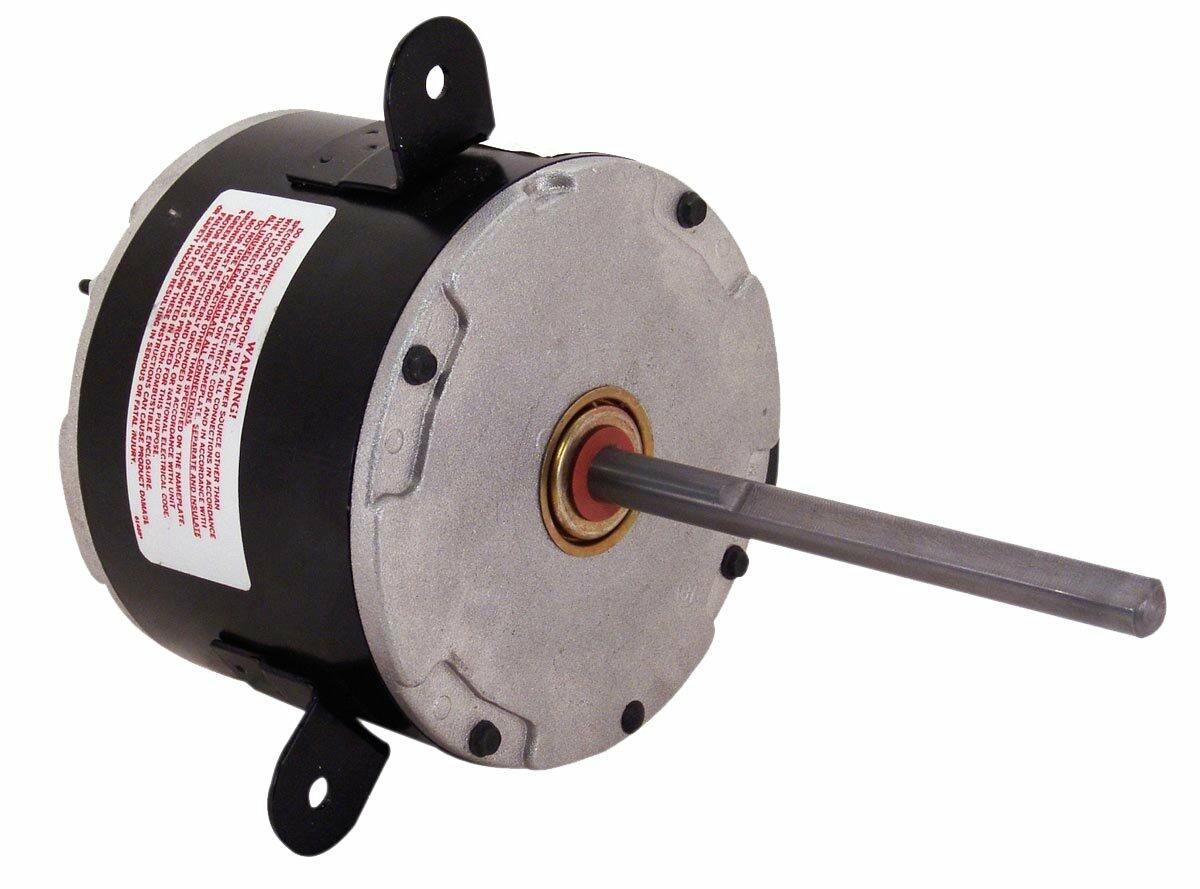

The Century OCA1024 is a 5 5/8 inch OEM direct replacement motor for Carrier and BDP HVAC equipment This permanent split capacitor motor operates at 230 volts delivering 1/4 horsepower and 1625 RPM with a single speed It features a 48Y frame with lug mounting sleeve bearings and automatic thermal overload protection This semi enclosed motor is designed for horizontal air over duty and is suitable for condenser fan and blower applications.

Attribute	Details
Brand	Century
Model Number	OCA1024
Type	Permanent Split Capacitor (PSC) Motor
OEM Replacement For	Carrier BDP
Horsepower	1/4 HP
Voltage	230V
Phase	1
Frequency	60 Hertz
Speed	1625 RPM
Frame	48Y
Motor Diameter	5 5/8 Inch
Mounting	Lug
Rotation	CCWLE (Counter Clockwise Lead End)
Bearings	Sleeve
Enclosure	Semi Enclosed
Duty	Air Over
Ambient Temperature	140°F Max
Insulation Class	B
Overload Protection	Automatic
Amperage	1.4
Poles	4
Speeds	1
Orientation	Horizontal
