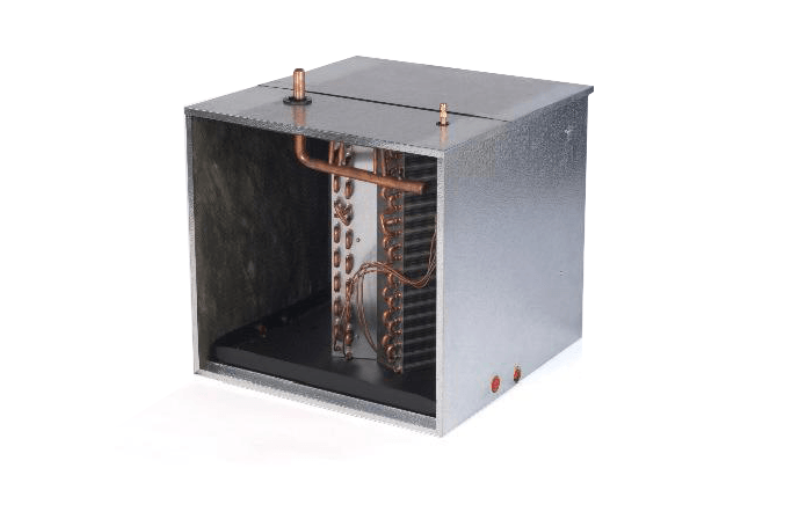

The Aspen CB60B4G245T034 is a high-performance 5-ton horizontal cased evaporator coil engineered for use with Goodman gas furnaces, split system air conditioners, and heat pump systems. Built with rifled copper tubing and enhanced aluminum fins, this coil delivers efficient heat transfer and reliable HVAC performance. The galvanized steel insulated cabinet, heavy-duty drain pan, and easy-access service doors ensure durability, simple maintenance, and long-lasting operation in residential or light commercial applications.

Features

• 5-ton horizontal cased evaporator coil
• Compatible with Goodman gas furnaces, A/C systems, and heat pumps
• Designed for R-410A refrigerant systems
• Durable galvanized steel cabinet construction
• Rifled copper tubing with enhanced aluminum fins for efficient airflow
• Nitrogen pressurized and immersion-tested at 500 PSI
• Fully insulated cabinet with faced insulation
• Heavy-duty plastic drain pan with four 3/4" FPT condensate drains
• Externally mounted flowrater body with Schrader valve
• Split access doors for easier servicing and maintenance
• AHRI certifiable with all brands of A/C and heat pump systems

Details

• Brand: Aspen Manufacturing
• Model: CB60B4G245T034
• Part Number: CB60B4G245T034
• Product Type: Horizontal Cased Coil
• Capacity: 5 Ton
• Refrigerant Type: R-410A
• Suction Valve Size: 3/4 in
• Liquid Valve Size: 3/8 in
• Coil Dimensions: 24 in W x 22 3/4 in D x 22 3/4 in H
• Cabinet Material: Galvanized Steel
• Finish: Polished Brass
• Drain Connections: Four 3/4 in FPT Condensate Drains
• Weight: 67 lbs
• Application: Residential & Light Commercial HVAC Systems
• Installation Type: Horizontal
• Special Features: Fully insulated cabinet, split access doors, heavy-duty drain pan, nitrogen pressurized coil
